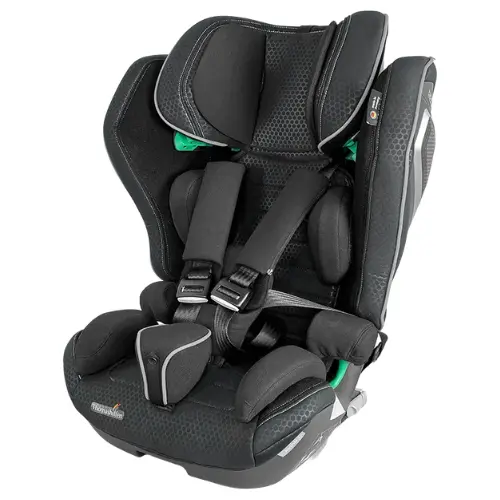

RECARO Axion 1 Reha
Adapts to each child’s individual needs. It enhances mobility and perception while ensuring maximum safety every day.
The RECARO Axion 1 Reha gives families with specific requirements safety and confidence on every journey. It was specially developed for children with a height of 100 – 150 cm / 39.4″ – 59.1″ and a weight of up to 50 kg / 110.2 lbs.
With its innovative side impact protection, individually adjustable padding and guide elements, as well as ergonomic seat design, it not only provides optimal support, but also a sense of security and comfort – even on long journeys. Easy to use, flexible for everyday use, and manufactured to the highest “Made in Germany” quality standards – so that every journey remains safe and relaxed.
Hidden
Enquire Now
Features and Benefits:
- Individual support: Head, chest, seat side, and leg pads as well as abduction guides are included and can be used flexibly—for perfect support as needed.
- Sound System: Speakers in the side panels with connector for audiobooks / music.
- Easy and secure installation: Thanks to the ISOFIX connection, the RECARO Axion 1 Reha can be securely installed in the vehicle in no time at all.
- Additional head padding: Provides secure support for small children's heads and can be easily removed as they grow.
- Easy care covers: Removable, washable, and OEKO-TEX® certified for a hygienic and comfortable seating experience.
Examples of functions
Side impact protection
Innovative trapezoidal design provides additional stability and effective force absorption
Innovative trapezoidal design provides additional stability and effective force absorption
5-point harness
Integrated 5-point harness for optimal adjustment of the child's seating position.
Integrated 5-point harness for optimal adjustment of the child's seating position.
Sound System
In the side panels – so that the speaker magnet is not too close to the head.
In the side panels – so that the speaker magnet is not too close to the head.
Adjustable headrest
Ergonomic, height-adjustable headrest, that grows step by step together with the child.
Ergonomic, height-adjustable headrest, that grows step by step together with the child.
| Dimensions & Weights – RECARO Axion 1 Reha | |
|---|---|
| Seat depth (behind crotch strap) | 22 cm / 8.7″ |
| Seat depth (behind front edge) | 34 cm / 13.4″ |
| Seat width | 27 cm / 10.6″ |
| Back height (seat inside) | 55 – 75 cm / 21.7 – 29.5″ |
| Shoulder height (harness guide) | 34 – 54 cm / 13.4 – 21.3″ |
| Shoulder width | 35 cm / 13.8″ |
| Seat tilt (with tilt plate) | 2.5° / 5° / 7.5° / 10° |
| Overall dimensions (W × H × D) | 52 × 63 × 39 cm / 20.5 × 24.8 × 15.4″ |
| Weight of the seat (base model) | 6 kg / 13.2 lbs |
| User height | 100 – 150 cm / 39.4″ – 59.1″ |
| Max. user weight | 50 kg / 110.2 lbs |
