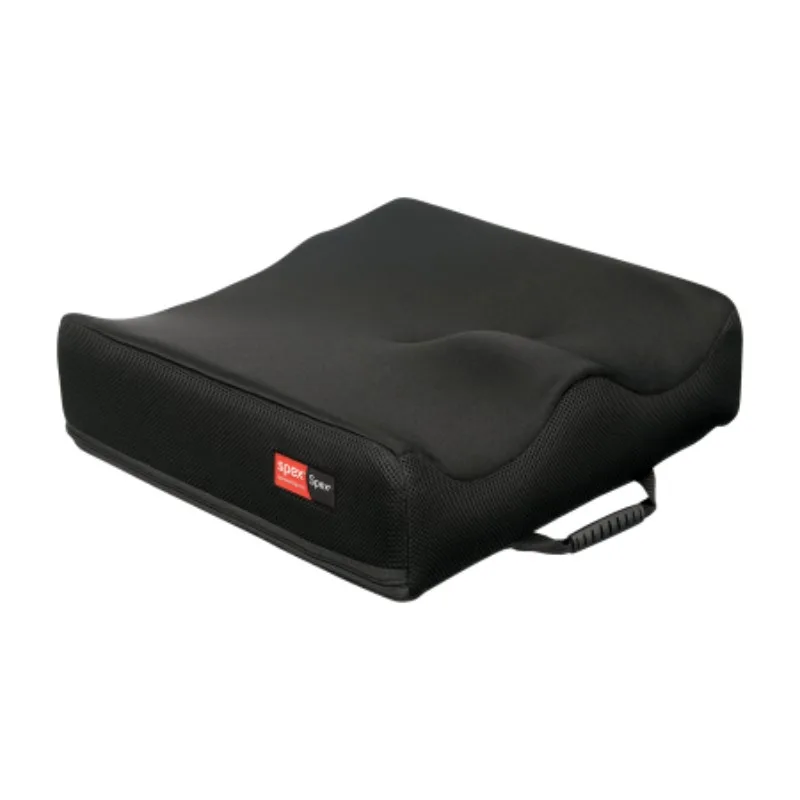

Spex High Contour Cushion


The SPEX cushion is designed to create the optimum pelvic foundation for the wheelchair user. Well established and preferred by many professionals for its capacity to adjust on-the-spot in solving for both symmetrical and asymmetrical sitting postures. Spex cushion technology provides the key solution to positioning and levelling the pelvis correctly and effectively by strategic placement in the adjustable base cell system to further contour the cushion for correction or control.

The technology of the construction produces a broad distribution pattern with low peak pressures, and pressure analysis data suggest that the pressure distribution characteristics of the SPEX cushion makes it an excellent candidate for people that are at risk of skin ulcers. Further pressure management and pressure redistribution is adjusted by simply rearranging and modifying the cells at any time.


Spex High Contour Cushion


Designed for the user who has moderate to severe positioning and pressure requirements. Excellent choice for individuals who:

  • Need high control of abduction/adduction propensities.
  • Have changing postural needs over time.
  • Have a symmetrical or asymmetrical sitting posture that requires correction or control.
  • Require pelvic comfort and pressure relief/distribution.
  • Require a high degree of pelvic stability and specific contouring.
  • Have tight hamstrings/lack of hip flexion.
  • No maintenance required. A reliable, peace-of-mind solution!
  • Created as the solution-solver for asymmetrical postures.
  • Strategic contouring pads offer complete customisations on-the-spot for a perfect fit for the client.
  • Removable trochanter supports for pelvic obliquity or reduction, or build-up for hip flexion.
  • Gel-foam ischial well evenly distributes pressure under the pelvis and reduces shear forces in sensitive areas.
  • Coccyx channel for enhanced pressure relief (for sizes 16” +)
  • Includes breathable ‘spacer’ fabric cover and bonus inner incontinence cover.


With the proven in-built adjustable base system, the SPEX cushion can be configured to solve many different pelvis needs ranging from basic cushion stability up to difficult pelvic situations.

Modifications by strategic placement in the adjustable base cell system further contour the cushion for correction, control, balance, stability, pressure redistribution and many other needs.

With adjustment being done at the base of the cushion, the upper foam layers are unaffected and don’t cause bottoming-out or further pressure risks.

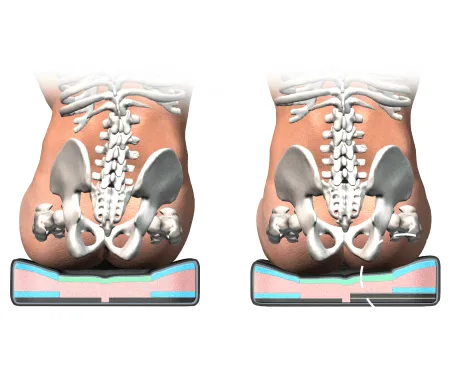

Configurations can be easily made so pressure is redistributed from the ischial tuberosities and coccyx onto the trochanters and femurs for enhanced load bearing and stability.

With treating each leg independently via the cells it is easy to obtain optimum positioning and levelling the pelvis correctly and effectively, and this process can be carried out without limit by simply rearranging and modifying the cells at any time for changing postural needs.

Obliquity adjustment is simple and can be built up with the 10mm pads to create the correct hight required.

The Spex cushion can be adapted on-the-spot to suit individual pelvic needs including:

  • Pelvic obliquity
  • Tight hamstrings
  • Posterior pelvic tilt
  • Anterior pelvic tilt
  • Limited hip flexion (one side or both)
  • Extensor thrust
  • Pelvic rotation
  • And much more!

Spex Adjustable Cushion Positioning Ideas

Spex Cushion Strategic Positioning Chart

Weight capacity:

  • 10-15”: 90 kg/200 lb
  • 16-20”: 136 kg/300 lb

50 mm Trough height

Width Length Code Spare Cover Incontinence Cover
10″ 10″ 1105-1010-0HC 1125-1010-6HC 1135-1010-7HC
12″ 1105-1012-0HC 1125-1012-6HC 1135-1012-7HC
11″ 10″ 1105-1110-0HC 1125-1110-6HC 1135-1110-7HC
12″ 1105-1112-0HC 1125-1112-6HC 1135-1112-7HC
12″ 12″ 1105-1212-0HC 1125-1212-6HC 1135-1212-7HC
14″ 1105-1214-0HC 1125-1214-6HC 1135-1214-7HC
13″ 12″ 1105-1312-0HC 1125-1312-6HC 1135-1312-7HC
14″ 1105-1314-0HC 1125-1314-6HC 1135-1314-7HC
14″ 14″ 1105-1414-0HC 1125-1414-6HC 1135-1414-7HC
16″ 1105-1416-0HC 1125-1416-6HC 1135-1416-7HC
15″ 14″ 1105-1514-0HC 1125-1514-6HC 1135-1514-7HC
16″ 1105-1516-0HC 1125-1516-6HC 1135-1516-7HC
16″ 16″ 1105-1616-0HC 1125-1616-6HC 1135-1616-7HC
18″ 1105-1618-0HC 1125-1618-6HC 1135-1618-7HC
17″ 17″ 1105-1717-0HC 1125-1717-6HC 1135-1717-7HC
18″ 1105-1718-0HC 1125-1718-6HC 1135-1718-7HC
18″ 18″ 1105-1818-0HC 1125-1818-6HC 1135-1818-7HC
20″ 1105-1820-0HC 1125-1820-6HC 1135-1820-7HC
19″ 18″ 1105-1918-0HC 1125-1918-6HC 1135-1918-7HC
20″ 1105-1920-0HC 1125-1920-6HC 1135-1920-7HC
20″ 20″ 1105-2020-0HC 1125-2020-6HC
22″ 1105-2022-0HC 1125-2022-6HC
