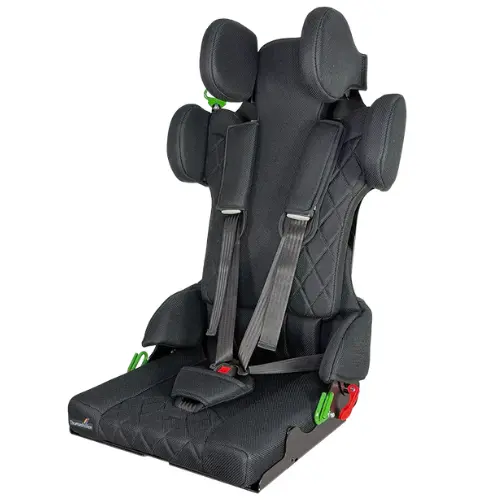

Hercules Prime
Modular rehab car seat that grows with the user for a long time
Hercules Prime has its great performance when rehab car seats have become too small or more support is needed when sitting in the car. As a modular positioning seat that grows with the user, it offers the familiar functions of a rehab car seat and can be very individually adapted with a large selection of accessories that grow with the user. When more support for the head and upper body is needed, a simple belt system in the car is not enough. For a good, safe sitting position on every journey.
Hidden
Enquire Now
Features and Benefits
Backrest height
With the infinitely variable height adjustment of the backrest by 25 cm / 9.8", it is possible to adapt to the user's growth at any time. The head is supported in an optimal position. The large selection of accessories that grow with the user allows for a long service life.
Large becomes small & handy
The large positioning seat can be quickly folded to a small, handy size in a few simple steps. This not only facilitates installation in the vehicle. – The positioning seat can also be easily transported in small cars and can be stowed away to save space.
Will Hercules Prime fit into my car?
Adjust the positioning seat when placed in the vehicle. In maximum back height there should be a distance of at least 5 cm / 2" between the top of head and the roof of the vehicle to ensure that tall users can still sit comfortably.
Hercules Prime is tested reliably
This rehab car seat has been specifically developed for children with special needs and tested according to highly stringent safety standards. Its strength has been verified through crash testing against criteria comparable to those of ECE R129. This helps ensure a high level of safety on every journey.
In addition to independent external testing, certified manufacturing according to DIN ISO 9001 and a quality management system in accordance with DIN ISO 13485 ensure high standards in development, production and quality control.
Examples of functions
Soft shoulder pads provide additional support and a good sitting position during the ride – the correct strap length is quickly adjusted on the two buckles.
can be adjusted to the backrest with two quick steps – no tools required, just use the red quick release lever.
Shoulder straps can be seperately clicked into the quick-release fastener, which means easier buckling for the carers.
| Dimensions & Weights – Hercules Prime | |
|---|---|
| Seat depth | 40 – 48 cm / 15.7 – 18.9″ |
| Seat width | 38 cm / 15″ |
| Back height (seat inside) | 55 – 80 cm / 21.7 – 31.5″ |
| Back width (seat) | 45 cm / 17.7″ |
| Shoulder height (belt guide) | 38 – 60 cm / 15.0 – 23.6″ |
| Shoulder width (with shoulder guide) | 45 cm / 17.7″ |
| Back angle (max.) | 135° |
| Seat tilt-in-space (basic model) | 0° |
| Seat tilt-in-space (with tilting base 10°) | 0° / 2.5° / 5° / 7.5° / 10° |
| Seat tilt-in-space (with tilting base 20°) | 10° / 12.5° / 15° / 17.5° / 20° |
| Lower leg length (with foot rest) | 17 – 43 cm / 6.7 – 16.9″ |
| Height of lateral trunk supports (upper edge) | 20 – 45 cm / 7.9 – 17.7″ |
| Distance lateral trunk supports (max.) | 41 cm / 16.1″ |
| Max. overall dimensions (W × H × D) | 52 × 88 × 43 cm / 20.5 × 34.6 × 16.9″ |
| Min. folded dimensions (W × H × D) | 55 × 21 × 60 cm / 21.7 × 8.3 × 23.6″ |
| Weight of seat (basic model) | 12.3 kg / 27.1 lbs |
| Body height user | 130 – 180 cm / 51.1 – 70.9″ |
| Max. user weight | 80 kg / 176.4 lbs |
